商品の詳細:
|
| Features: | Automatic carton forming, opening, filling, sealing, and batch number printing | Application: | Food, Beverage, Commodity, Medical, Chemical, |
|---|---|---|---|
| Packaging Material: | Paper | Driven Type: | Electric |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Machine Weight: | 1400kg |
| Power Supply: | 220V/380V, 50Hz/60Hz | Packaging Detail: | Normal Export Wooden Case |
| Working Noise: | <75dB | Orgin: | Zhejiang,China |
| Function: | High Efficiency | Output: | Max.80 boxes/min |
| Automatic Grade: | Automatic | ||
| ハイライト: | pharmaceutical automatic cartoning machine,high-speed cartoning machine 80 boxes/min,automatic cartoning machine with warranty |
||
| Attribute | Value |
|---|---|
| Application | Food, Beverage, Commodity, Medical, Chemical |
| Packaging Material | Paper |
| Driven Type | Electric |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
| Machine Weight | 1400kg |
| Power Supply | 220V/380V, 50Hz/60Hz |
| Packaging Detail | Normal Export Wooden Case |
| Features | Automatic carton forming, opening, filling, sealing, and batch number printing |
| Working Noise | <75dB |
| Origin | Zhejiang, China |
| Function | High Efficiency |
| Output | Max. 80 boxes/min |
| Automatic Grade | Automatic |

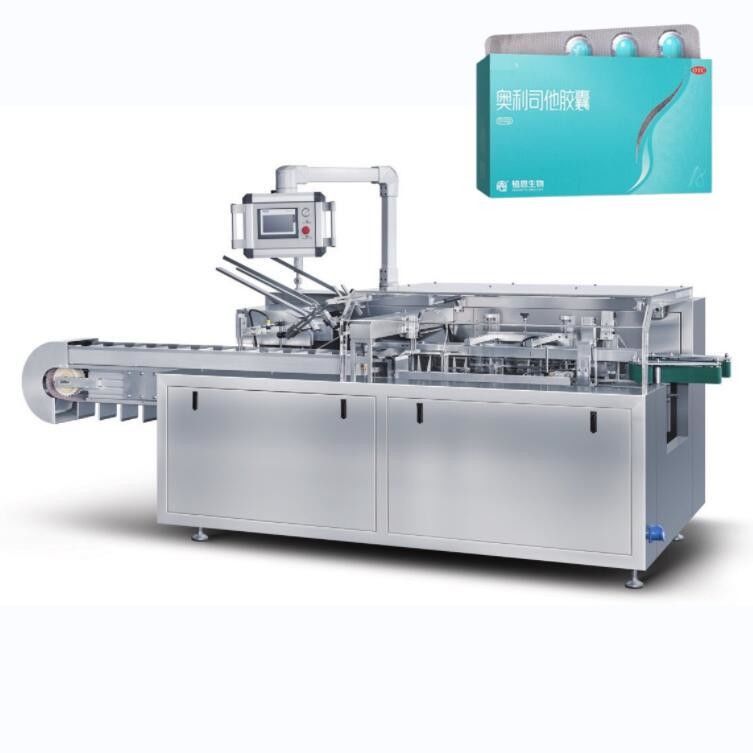

This automatic cartoning machine is a horizontal type box packing machine developed through extensive research of domestic and international technologies. Combining electrical, pneumatic, and mechanical systems, this high-performance machine delivers exceptional production efficiency and stability even during high-speed operation.
Ideal for pharmaceutical, food, cosmetics, and auto parts industries, this machine efficiently packages blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and other products into cartons.
| Cartoning Speed | 65 cartons/min (synchronized with tube filling machine) |
| Carton Requirements | 250-350g/㎡ (varies by carton size) |
| Dimension Range (L×W×H) | (100-185)mm × (30-70)mm × (25-45)mm |
| Leaflet Requirements | 60-70 g/㎡ |
| Unfolded Size Range (L×W) | (80-250)mm × (90-170)mm |
| Folding Range | 1-4 folds |
| Compressed Air | ≥0.6mpa working pressure, 120-160L/min consumption |
| Power Supply | 380V 50HZ |
| Main Motor Power | 1.5kw |
| Machine Dimensions (L×W×H) | 3100mm × 1100mm × 1550mm |
| Net Weight | Approx. 1400kg |
Approximately 30 working days.
We recommend shipping by LCL (Less than Container Load).
Yes, we have specialized in packaging machinery manufacturing for over 17 years.
Standard terms are 40% T/T deposit with balance paid before shipping.
