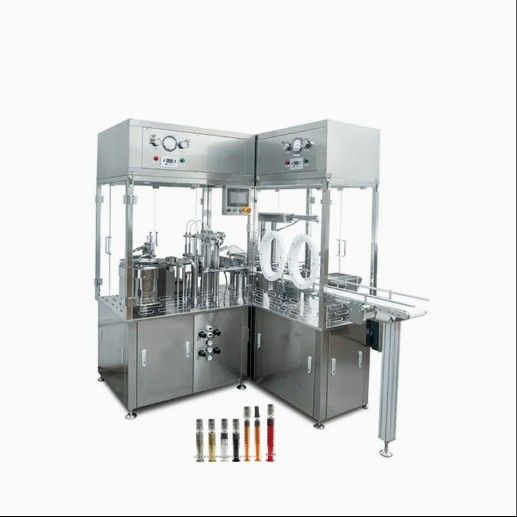

Prefilled Syringe High-Speed Filling System

Prefilled Syringe High-Speed Filling System
Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System

大画像 :  Prefilled Syringe High-Speed Filling System

商品の詳細:
起源の場所: 中国
ブランド名: TRUSTAR/HIJ
証明: CE
モデル番号: HIJ-GZB200
お支払配送条件:
最小注文数量: 1セット
価格: negotiable
パッケージの詳細: 耐航性のある木製のケース
受渡し時間: 場合によります。通常、約45営業日かかります。
支払条件: T/T
供給の能力: 10セット/月

Prefilled Syringe High-Speed Filling System

説明
スピード: 1200-1600p/h コアコンポーネントの保証: 1年
梱包材: ガラス 力: 3.5KW
電源: 220V、50Hz 機械重量: 350kg
機械のサイズ: L1088×W858×H1800mm アフターサービス: 提供された
ハイライト:

prefilled syringe filling machine with warranty

,

high-speed syringe filling system

,

prefilled syringe filler for pharmaceuticals

Prefilled Syringe High-Speed Filling System 0

Function
This machine is suitable for the glass syringe with luer lock and can fill like tooth whitening gel and hyaluronic acid.

1. This machine has compact structure, convenient installation and adjustment, overload clutch protection, fault shutdown
protection safe and reliably.
2. Adopt internationally renowned brand electrical components and servo motor combination. Fully automatic control easy to operate accurately and reliably.
3. Valveless rotary piston pump made of 316L or ceramic material with high precision ensures filling accuracy.


This machine is suitable for the above-mentioned components and assembly, filling and sealing, and clamping of syringes.
The machine uses machine-electric integrated technology, and all its main functions are controlled by servo motors. Accurate and reliable, long service life.
The electric control part uses PLC programmable controller, and the control program is stable and reliable.
The control panel is a touch screen all-in-one machine, with a simple and clear interface.
All detection parts use high-precision sensors for fine monitoring, and stoppage occurs when there is no pipe, no cap, and stops the operation of the machine to ensure that no problems occur.
The work of all pipes and stoppers is automated, which greatly improves efficiency and speed.





Specification
Applicable Materials Liquid and ointment
Applicable Syringe Specifications 0.5,1,2.25,3,5,10ML
Number of Filling Heads 2
Number of Capping Heads 2
Filling Accuracy ≤±1-2%
Production Capacity 1200-1600 p/h
Total Power 3.5KW
Voltage 380V/220V 50-60Hz
Compressed Air 0.55-0.75Mpa 15L/S
Dimensions L1088×W858×H1800mm
Total Weight 350KG

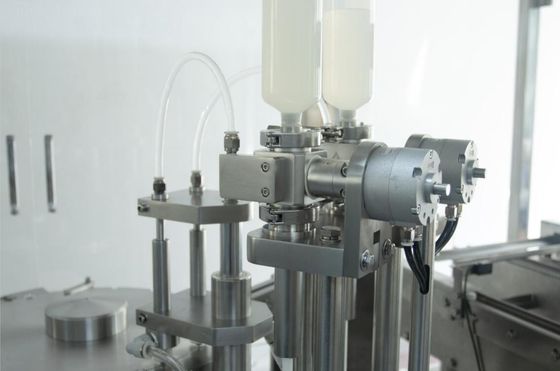

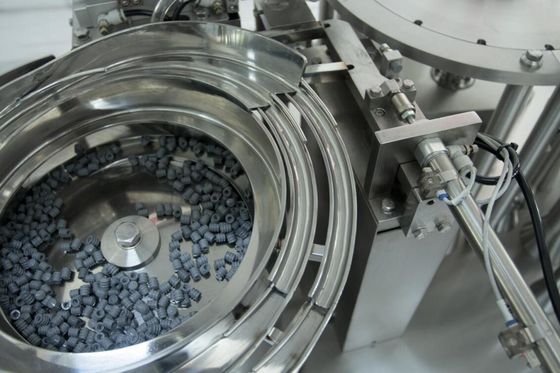

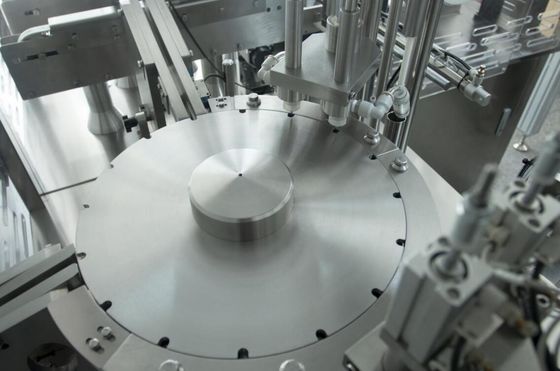

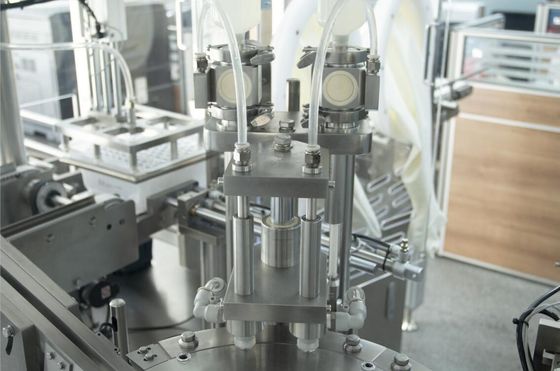

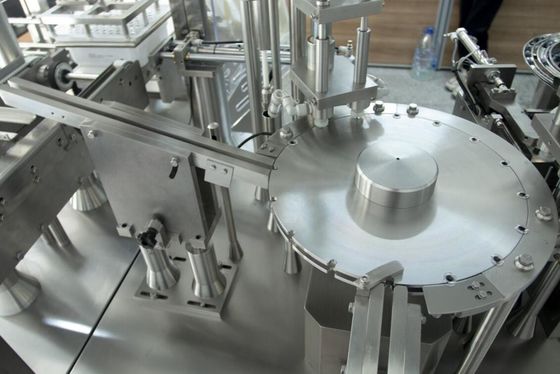

Machine Details
Prefilled Syringe High-Speed Filling System 1Prefilled Syringe High-Speed Filling System 2Prefilled Syringe High-Speed Filling System 3Prefilled Syringe High-Speed Filling System 4Prefilled Syringe High-Speed Filling System 5
Finished Product Display

Prefilled Syringe High-Speed Filling System 6Prefilled Syringe High-Speed Filling System 7

Q&A


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?

Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
