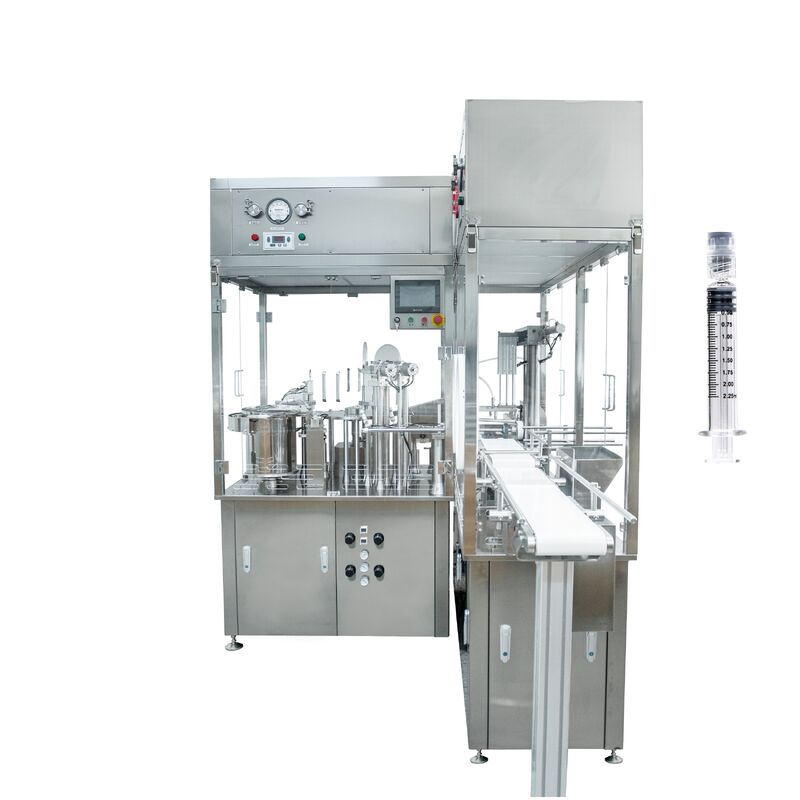

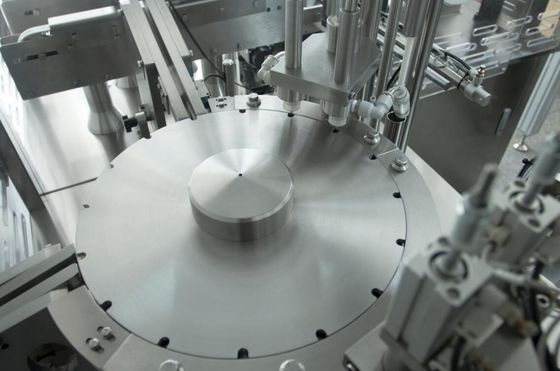

Aseptic Syringe Filling & Stoppering Line

Aseptic Syringe Filling & Stoppering Line
Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line Aseptic Syringe Filling & Stoppering Line

大画像 :  Aseptic Syringe Filling & Stoppering Line

商品の詳細:
起源の場所: 中国
ブランド名: TRUSTAR/HIJ
証明: CE
モデル番号: HIJ-GZB200
お支払配送条件:
最小注文数量: 1セット
価格: negotiable
パッケージの詳細: 耐航性のある木製のケース
受渡し時間: 場合によります。通常、約45営業日かかります。
支払条件: T/T
供給の能力: 10セット/月

Aseptic Syringe Filling & Stoppering Line

説明
スピード: 1200-1600p/h コアコンポーネントの保証: 1年
梱包材: ガラス 力: 3.5KW
電源: 220V、50Hz 機械重量: 350kg
機械のサイズ: L1088×W858×H1800mm アフターサービス: 提供された
ハイライト:

aseptic syringe filling machine

,

prefilled syringe stoppering line

,

sterile syringe filling equipment

Aseptic Syringe Filling & Stoppering Line 0

Function
1.This product is widely applicable to SCF (prefilled syringe) syringes from BD, BG, SCHOTT and major domestic manufacturers. Other types of syringes can also be customized.
2.The surface is made of SUS304 stainless steel, and the contact parts are made of SUS316L stainless steel and silicon rubber, which fully meets the requirements of GMP specifications.

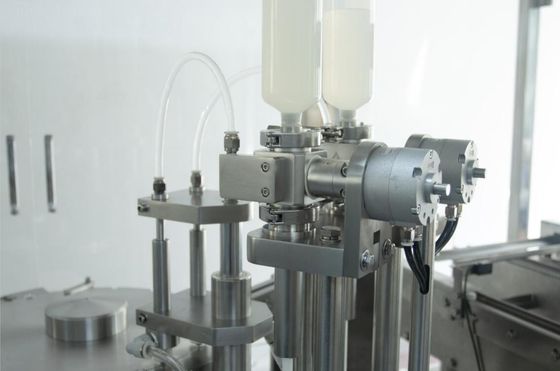

3.The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.

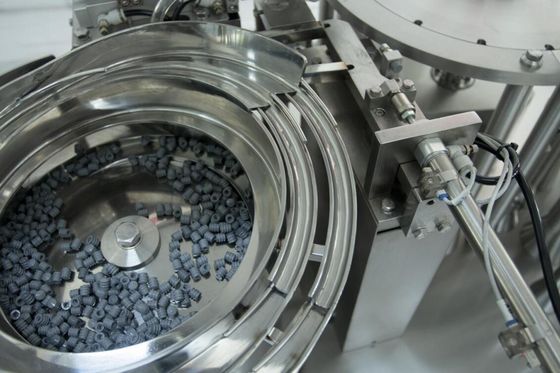

4.The conveying and sorting of the rubber plugs are realized by the vibratory feeder, which is made of SUS316L stainless steel clean plate with bright surface treatment and no clean dead corners.
5.It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
6.The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
7.A variety of filling doses and filling methods are available, and a variety of material front-end functions are optional.
8.The injection needle is used for filling with the liquid level rising to prevent splashing of liquid.
9.The vacuum filling system is suitable for viscous materials to ensure that the liquid fills the filling space without bubbles or faults, and improves the qualified rate of finished products.
10.The vacuum stopper system avoids particles generated by the vibration and friction of the rubber stopper, and ensures that the rubber stopper is in close contact with the liquid surface.
11.Modular design, easy to locate, easy to expand, can be used as a stand-alone machine, can also be connected to the nesting machine, rotating rod machine, labeling machine, light inspection machine and other equipment to form a production line.
12.Optional hundred-level laminar flow hood to achieve high-demand clean production.



Specification
Applicable Materials Liquid and ointment
Applicable Syringe Specifications 0.5,1,2.25,3,5,10ML
Number of Filling Heads 2
Number of Capping Heads 2
Filling Accuracy ≤±1-2%
Production Capacity 1200-1600 p/h
Total Power 3.5KW
Voltage 380V/220V 50-60Hz
Compressed Air 0.55-0.75Mpa 15L/S
Dimensions L1088×W858×H1800mm
Total Weight 350KG



Machine Details

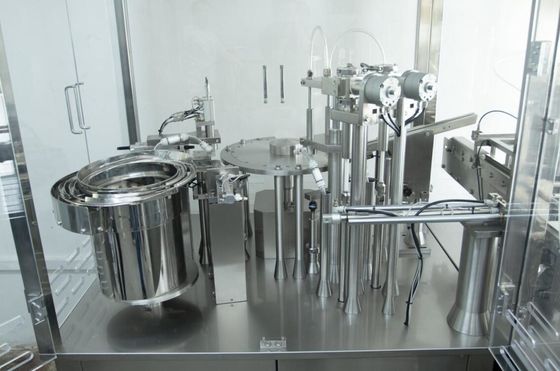

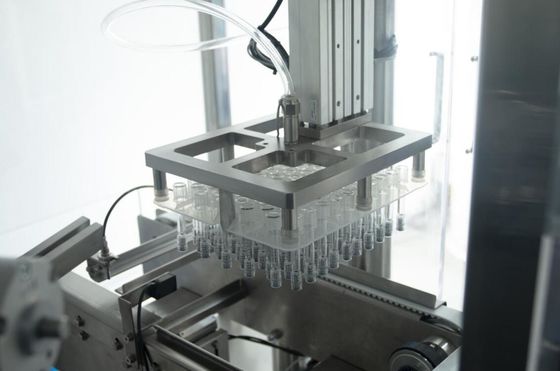

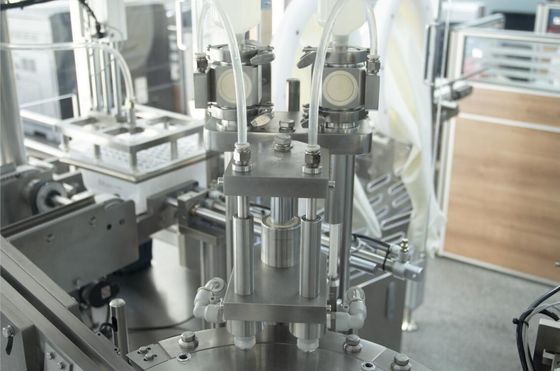

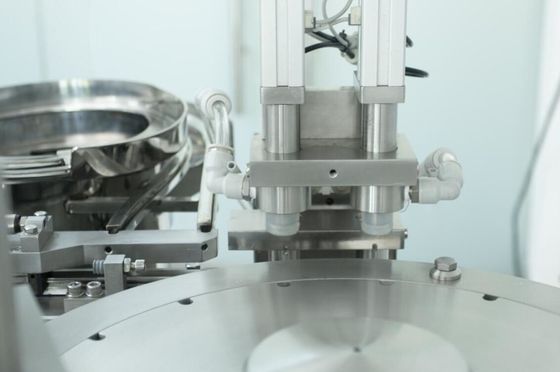

Aseptic Syringe Filling & Stoppering Line 1Aseptic Syringe Filling & Stoppering Line 2Aseptic Syringe Filling & Stoppering Line 3Aseptic Syringe Filling & Stoppering Line 4Aseptic Syringe Filling & Stoppering Line 5
Sample Display

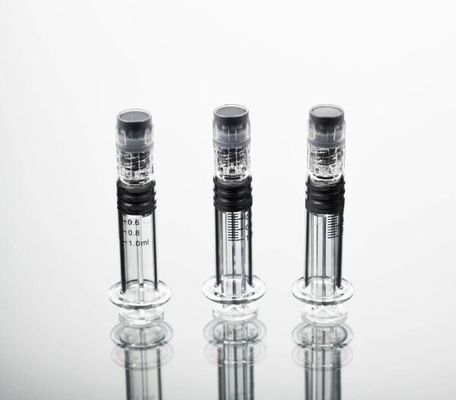

Aseptic Syringe Filling & Stoppering Line 6Aseptic Syringe Filling & Stoppering Line 7

Company profile

Aseptic Syringe Filling & Stoppering Line 8

WENZHOU TRUSTAR MACHINERY TECHNOLOGY CO.,LTD is a professional manufacturer and supplier of pharmaceutical, food, and cosmetic packaging machinery. Our product range includes pharmaceutical machinery series, cosmetic field equipment, foodstuff packaging machinery series, and cartoning box packaging machines. With over ten years of experience in this field, we supply high-quality machines to domestic and international customers, providing timely service, complete validation documents, and total solutions for pharmaceutical, foodstuff packaging, and cosmetic applications.

Q&A

1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?

Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
